W750 Step Van

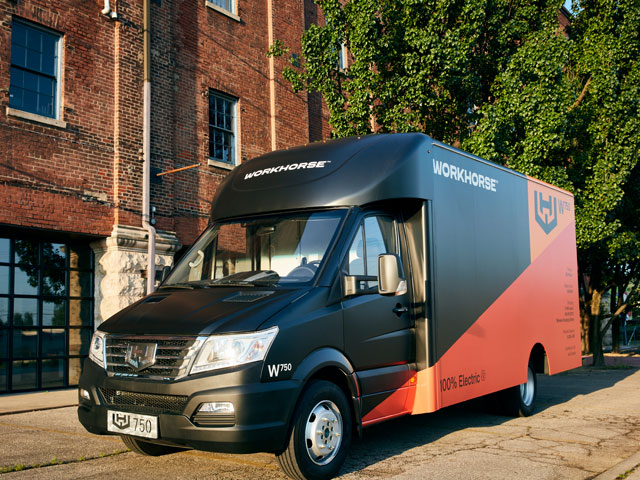

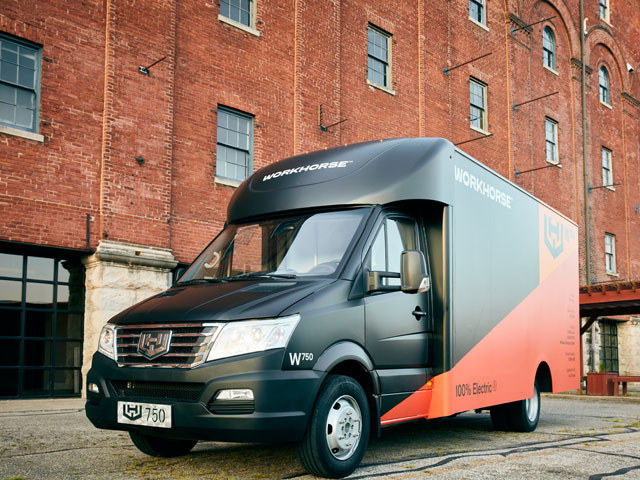

INTRODUCING THE W750 Step Van Ready to Roll
When it’s time to get to work, the all-electric W750 is the answer. This capable truck comes ready to roll with a spacious cargo hold, hefty payload capacity, and impressive range. It’s the durable work vehicle you can depend on.
AT A GLANCE
14,300 LBS
GROSS VEHICLE WEIGHT
5,000 LBS
MAX PAYLOAD
201 HP
PEAK POWER
25 FT
MAX BODY LENGTH
150 MILES
RANGE
118 kWh LFP
Battery Size
Vehicle Class
4
GVWR
14,300 lbs.
Curb Weight
9,300 lbs.
Payload
5,000 lbs.
Axle Load Rating - Front
4,409 lbs.
Axle Load Rating - Rear
9,920 lbs.
Battery
kWh
118
Voltage
576
Chemistry
LiFePo4
Range* (Nominal)
150 Miles

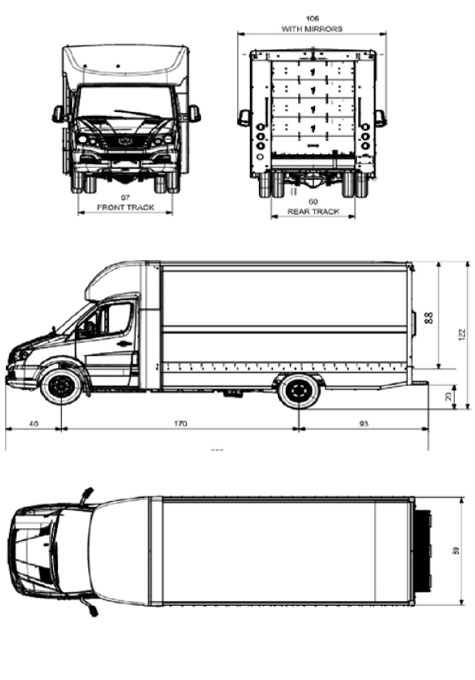

Dimensions: (Inches)
➀ Width
89
➁ Length
303
➂ Height
122
➃ Wheelbase
170
Front Track
67
Rear Track
60
Turning Radius
46
➄ Front Overhang
40
➄ Rear Overhang
93
Approach Angle
23°
Breakover Angle
8°
Departure Angle
21°
Ground Clearance
8
Step in Height
N/A
Rear Step Height
20
Cargo Box:
Volume
750 ft.3
Length (Interior)
185
Width
89
Height
122
Door Opening Height
78
Door Opening Width
60
Efficiency:
MPGe
48
kWh/mile
0.77
miles/kWh
1.3
Charging:
Level 2
J1772/11 kW/~11 hrs
Level 3
CCS-1/61 kW/3-4 hrs
Induction/Wireless
DC/60 kW/3-4 hrs
ECU Communications
CAN Bus/J1939
HVAC
Heating
A/C
A/C
Motor
150 kW max
Top Speed (mph)
68
Tires: #/Size
6/215/75R 17.5
Frame
Steel
Seating
2
Certification
MY 2022: FMVSS, ZEV
Braking System
Front Disc/Rear Drum Brake, A.B.S
*While Workhorse trucks work hard and go a long way, driver habits, inclement weather, and other factors can limit range. Your results may vary.
Disclosure: No express or implied representations, warranties, or guarantees of any kind are given to the accuracy, completeness, or correctness of the information contained in this communication. This communication does not ensure the availability of any Workhorse products. Workhorse reserves the right to modify product specifications, pricing, and equipment at any time.
