W4 CC
INTRODUCING THE W4 CC CAB CHASSIS Built with Purpose
With a flexible cab chassis and variable cargo space, you can customize the W4 CC to fit your fleet. Modular, capable, and spacious, it’s the ideal truck for last-mile delivery, specialty trades, and more. Whatever you’re hauling, the W4 CC can handle it.
AT A GLANCE
14,300 LBS
GROSS VEHICLE WEIGHT
7,000 LBS
MAX PAYLOAD
201 HP
PEAK POWER
24 FT
MAX BODY LENGTH
150 MILES
RANGE
118 kWh LFP
Battery Size
Vehicle Class
4
GVWR
14,300
Curb Weight
7,300
Payload
7,000
Axle Load Rating - Front
4,409
Axle Load Rating - Rear
9,920
Battery
kWh
118
Voltage
576
Chemistry
LiFePo4
Range* (Nominal)
150 Miles

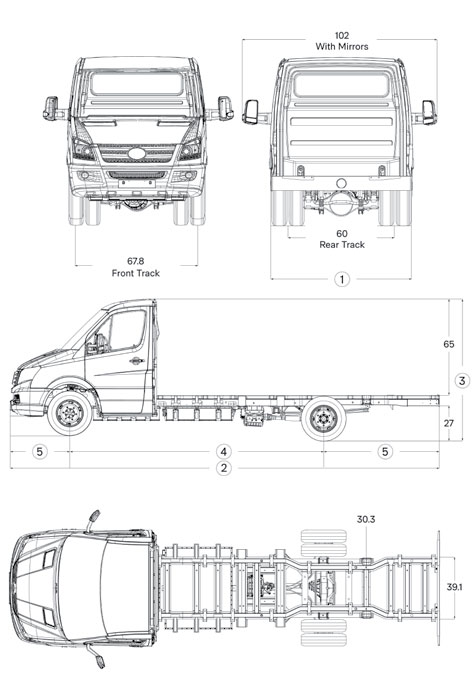

Dimensions: (Inches)
➀ Width
78
➁ Length
287
➂ Height
93
➃ Wheelbase
170
Front Track
67.3
Rear Track
60
Rail Height
36
Rail Length
188
Cab-to-Axle Distance
110
Turning Radius
46
➄ Front Overhang
40
➄ Rear Overhang
77
Approach Angle
23°
Breakover Angle
8°
Departure Angle
21°
Ground Clearance
8
Efficiency:
MPGe
48
kWh/mile
0.77
miles/kWh
1.3
Charging:
Level 2
J1772/11 kW/~11 hrs
Level 3
CCS-1/61 kW/3-4 hrs
Induction/Wireless
DC/60 kW/3-4 hrs
ECU Communications
CAN Bus/J1939
HVAC
Heating
A/C
A/C
Motor
150 kW max
Top Speed (mph)
68
Tires: #/Size
6/215/75R 17.5
Frame
Steel
Seating
2
Certification
MY 2022: FMVSS, ZEV
Braking System
Front Disc/Rear Drum Brake, A.B.S
*While Workhorse trucks work hard and go a long way, driver habits, inclement weather, and other factors can limit range. Your results may vary.
Disclosure: No express or implied representations, warranties, or guarantees of any kind are given to the accuracy, completeness, or correctness of the information contained in this communication. This communication does not ensure the availability of any Workhorse products. Workhorse reserves the right to modify product specifications, pricing, and equipment at any time.
