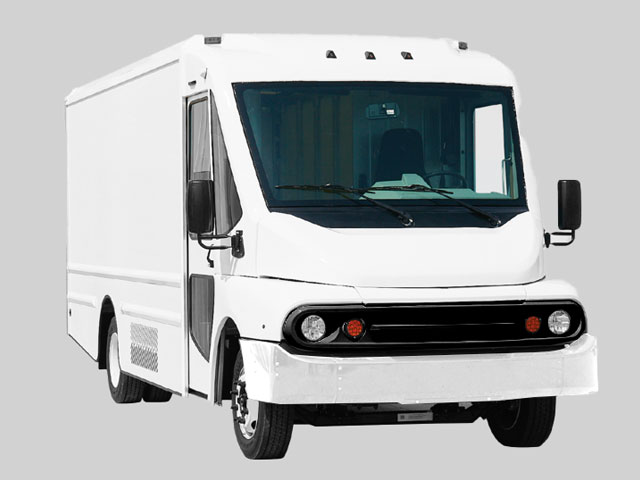

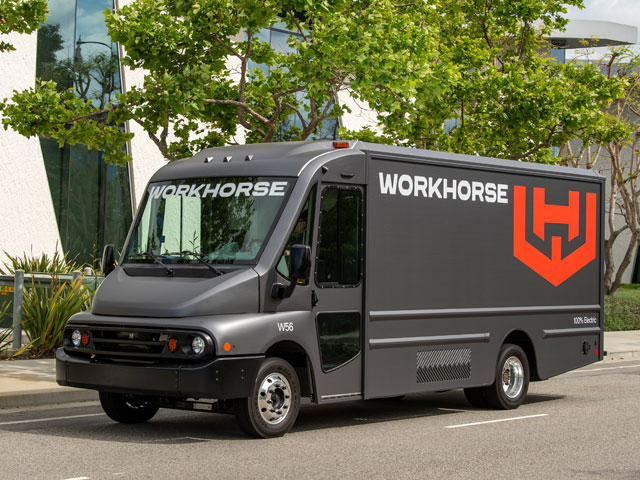

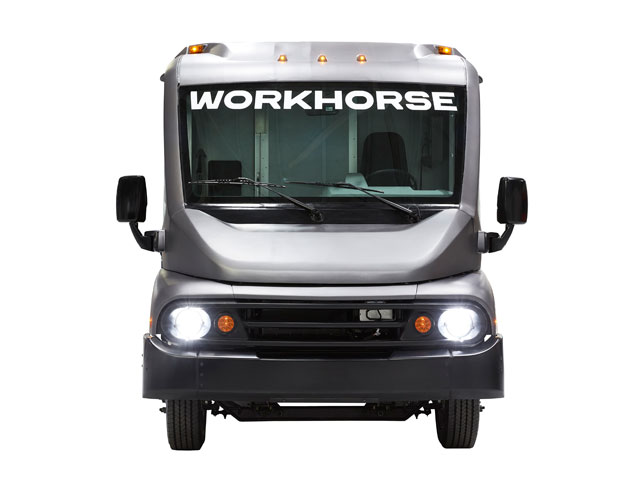

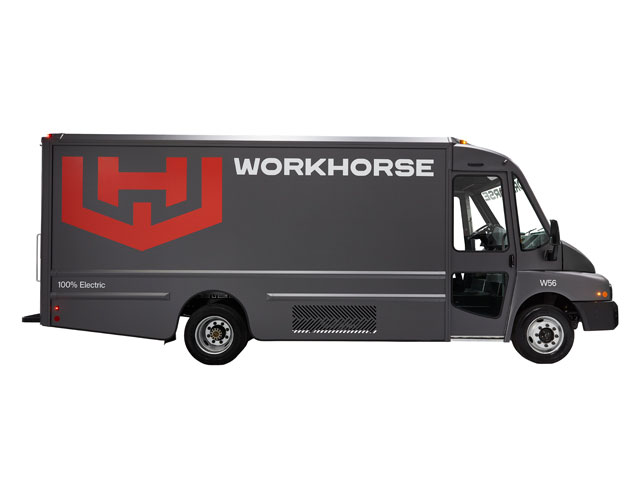

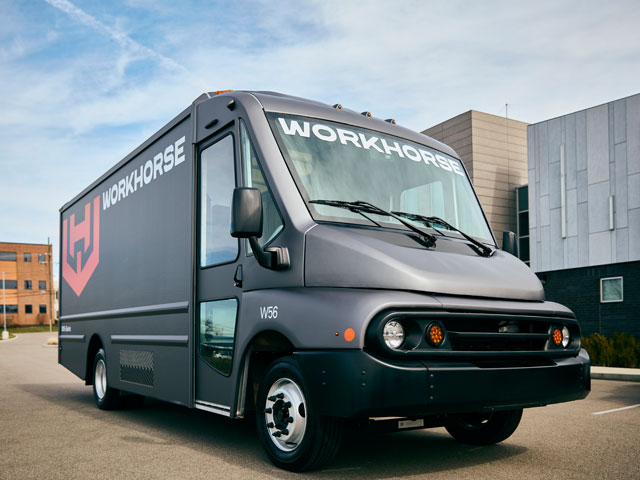

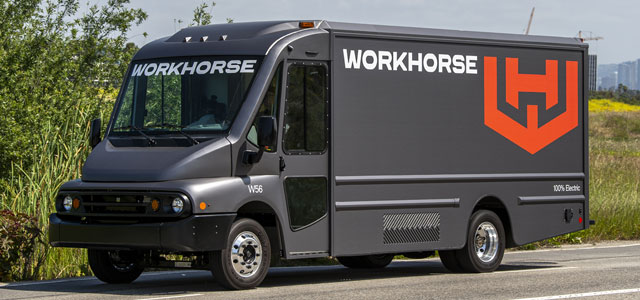

W56
INTRODUCING THE W56 Step Van Ready-Made to Get More Done
Engineered with fleet operators and their drivers in mind, the brand new W56 reimagines the way you get work done. Durable, ergonomic, and backed by Workhorse’s industry expertise, the W56 is an excellent choice when you’re carrying a higher payload.
- The custom-designed chassis with eAxle provides higher driveline efficiency and reduced maintenance.
- Sturdy aluminum wrapped in composite panels makes for a durable and low-maintenance truck body.
- Large 1,000+ cu. ft. cargo box with lowered step-in and wide cabin door makes in-and-out easier.
- Ergonomically designed cabin provides safety and comfort during even the longest shifts.
AT A GLANCE
23,000 LBS
GROSS VEHICLE WEIGHT
10,000 LBS
MAX PAYLOAD
395 HP
PEAK POWER
28 FT
MAX BODY LENGTH
150 MILES
RANGE
118 kWh LFP
Battery Size
Vehicle Class
5&6
GVWR
~23,000 lbs.
Curb Weight
~13,000 lbs.
Payload
~10,000 lbs.
Axle Load Rating - Front
8,000 lbs.
Axle Load Rating - Rear
15,500 lbs.
Battery
kWh
210
Voltage
690
Chemistry
LFP
Range**
150 Miles
Dimensions: (Inches)
➀ Width
96
➁ Length
329
➂ Height
125
➃ Wheelbase
178
Front Track
76.3
Rear Track
69.5
Turning Radius
52 ft.
➄ Front Overhang
47
➄ Rear Overhang
104
Approach Angle
20°
Breakover Angle
266°
Departure Angle
10°
Ground Clearance
10.2
Step in Height
12.25
Rear Step Height
23
Cargo Box:
Volume
1000 cu. ft.
Length (Interior)
209
Width
90
Height
86
Door Opening Height
76
Door Opening Width
84
Charging:
Level 2 AC
20 kW
Level 3 AC/DC
100 kW
HVAC
Heat, Deforst in Cabin AC Standard
Motor
eAxle
Top Speed (mph)
65+
Tires: #/Size
245/70R19.5
Frame
Steel Ladder Frame
Seating
1 + Jump Seat
Certification
MY 2024 Targeted: FMVSS, ZEP, ZEV
Braking System
4-Channel ABS
*Class 6 configuration.
**While Workhorse trucks work hard and go a long way, driver habits, inclement weather, and other factors can limit range. Your results may vary.
Disclosure: No express or implied representations, warranties, or guarantees of any kind are given to the accuracy, completeness, or correctness of the information contained in this communication. This communication does not ensure the availability of any Workhorse products. Workhorse reserves the right to modify product specifications, pricing, and equipment at any time.
